Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

The Automatic Air Vent Valve is designed to automatically remove accumulated air from hot and cold water distribution systems. Using a float-operated valve plug, it releases trapped air while maintaining system pressure and closes automatically when water reaches the valve. The valve can also provide an anti-vacuum function, allowing air to enter the system during drainage. It is suitable for water and water/glycol mixtures containing up to 50% glycol, with a maximum working pressure of 16 bar and a temperature range of -20°C to 110°C

Specification

Product Name Automatic Air Vent Valve
Body & Cover Stainless Steel
Seal Silicone Rubber
Maximum Working Pressure PN16
Temperature Range -20°C to 110°C

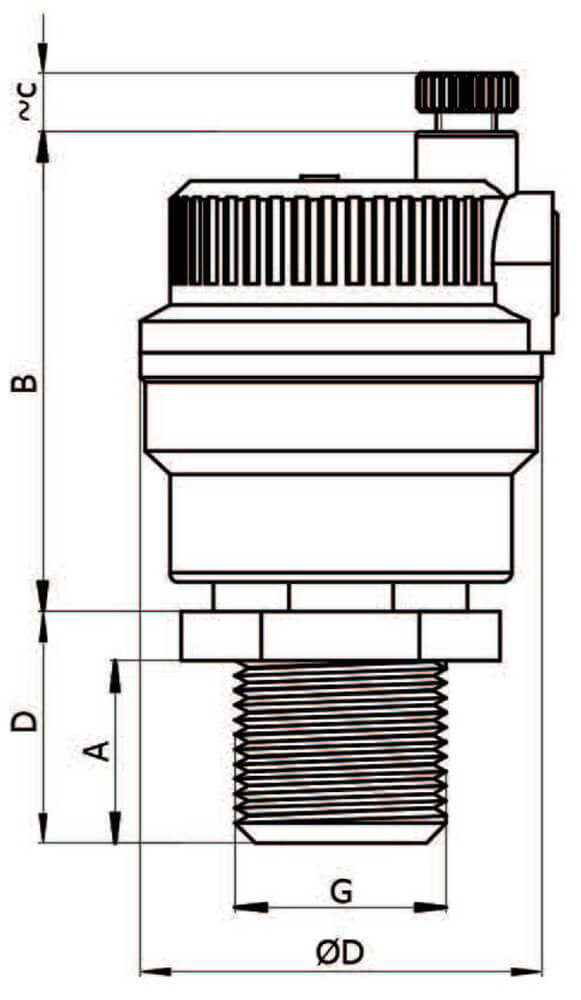

Dimensions Data

DNGABCDφD
151/2"12497/40
203/4"18.549723.540
251"18.549723.540
