Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

When the medium enters the component, the elbow section changes the direction of flow. The medium then passes through the internal filter screen, which captures impurities and particles from the fluid.After filtration, the flow passes through the specially designed flow-straightening plate. The plate helps organize the flow, reduce turbulence, and minimize cavitation. This produces a more stable flow condition while helping reduce noise and potential adverse effects on downstream pumps.

Specification

Product Name Material
Nominal Diameter DN50–DN600
Nominal Pressure PN16
Operating Temperature -20°C to 120°C
Fluid Medium Water
Connection Standard GB/T 17241.6-2008
Testing Standard GB/T 13927-2008

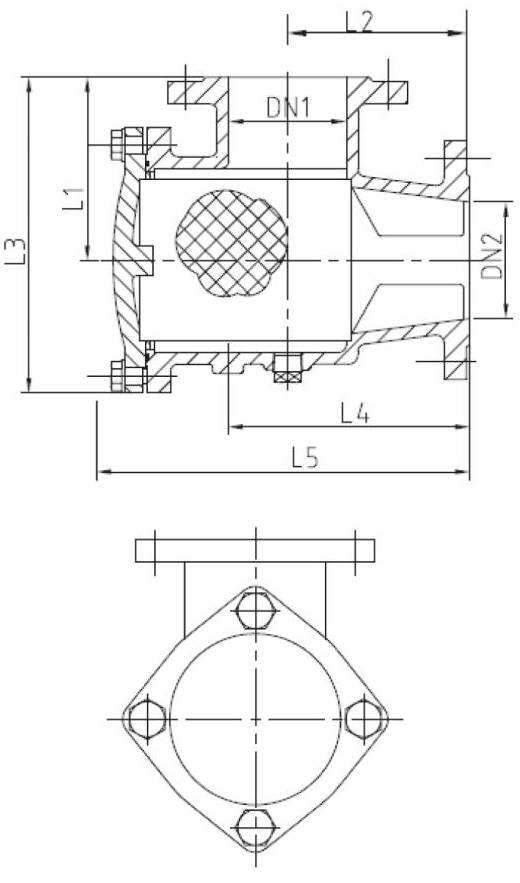

Dimensions Data

DN1×DN2L1L2L3L4L5
50×50105120168155205
65×65115125195165220
80×80130135220185250
100×80130135220185250
100×100145185250230330
125×100145185250230330
125×125180230300300400
150×100145185250230330
150×125180230300300400
150×150209220349275380
200×125205220345275380
200×150205220345275380
200×200240280410370501
