Features

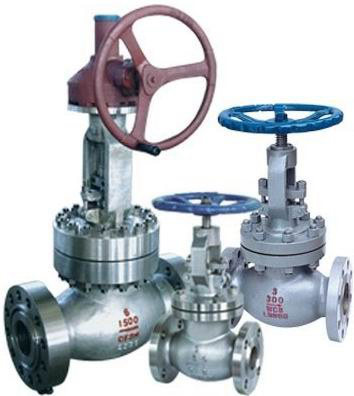

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design and Manufacture Conform to ANSI B16.34
· Flange dimensions Conform to ASME B16.5
· Face to Face dimensions Conform to ASME B16.10
· Testing Conform to API 598

Specification

Dimensions Data

Specification

NO.PARTASTM MaterialQingdao I-Flow Co., Ltd
WCBLCB(1)WC6CF8(M)CF3(M)
1BODYA216 WCB+13CrA352 LCB+13CrA217 WC6+STLA351 CF8(M)+STLA351 CF3(M)+STL
2DISCA216 WCB+13CrA352 LCB+13CrA182 F11+STLA351 CF8(M)A351 CF3(M)
3STEMA182 F6A182 F6A182 F6A182 F304(F316)A182 F304L(F316L)
4SLEEVEA105A105A182 F11A182 F304(F316)A182 F304L/F316L
5BONNET BOLTA193 B7A320 L7A193 B16A193 B8(M)A193 B8(M)
6BONNET NUTA194 2HA194 7A194 4A194 8(M)A194 8(M)
7GASKETSS304+GRAPHITEPTFE/SS304+GRAPHITEPTFE/SS316+GRAPHITE
8BONNETA216 WCBA352 LCBA217 WC6A351 CF8(M)A351 CF8(M)
9BACKSEATA182 F6A182 F6A182 F6

10PACKINGFLEXIBLE GRAPHITEPTFE/FLEXIBLE GRAPHITE
11GLANDA182 F6A182 F6A182 F6A182 F304(F316)A182 F304L/F316L
12GLAND FLANGEA216 WCBA352 LCBA217 WC6A351 CF8A351 CF3
13GLAND EYEBOLTA193 B7A193 B8A193 B8
14NUTA194 2HA194 8A194 8
15PINAISI 1025AISI 1025
16STEM NUTBRONZEBRONZE
17HANDWHEEL NUTAISI 1035AISI 1035



Dimensions data(mm)



Sizein1/23/4111/2221/2346810121416
mm15202540506580100150200250300350400
L/L1
(RF/BW)
in6.57.58.59.511.513141722263133--
mm165190216241292330356432559660787838--
L2
(RTJ)
in----11.6213.1214.1217.1222.1226.1231.1233.13--
mm----295333359435562663790841--
H
(Open)
in7.257.6291117.519.752124.529.536.544.8853.12--
mm18519523028044550253362275092711401350--
D0in44681011131618202424--
mm100100140200240280320400450500600600--
WT
(Kg)
BW6814233550601102304107701140--
RF/RTJ4.86.29.516.5273442841923506801030--
