Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

FCU Valve kit is a pre-assembled compact FCU valve package which saves installation time and labor. These pre assembled valve are factory tested and ready to install. The FCU Valve kit coupled with PICV is a perfect choice for your balancing solution.
They are factory assembled arrangement of Ball valves, strainer with drain facility, flexible hoses, insulation box, and pressure test points.

Specification

Item Description
Specification DN15-DN25
Working Temperature -10 to 120°C
Pressure Rating PN25
Working Medium Suitable for water and other liquids
Connection Method Thread
Connection Standard Internal thread/External thread BSP (ISO7/1) PN25

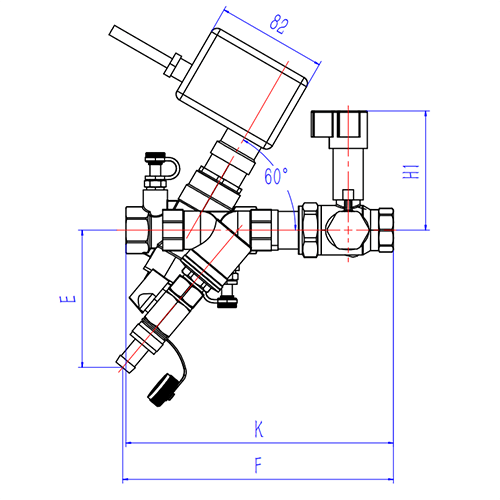

Dimensions Data

MODEL

DNL(min)H(min)EFKH1
FLT-MCU01525015-ZZ1560114102.5194.2112.586
FLT-MCU02025020-ZZ2070127102.5195.411389
FLT-MCU02525025-ZZ2580153106.2211.6127.493
