Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· DESIGN STANDARD:JIS F 7417-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42-0.4

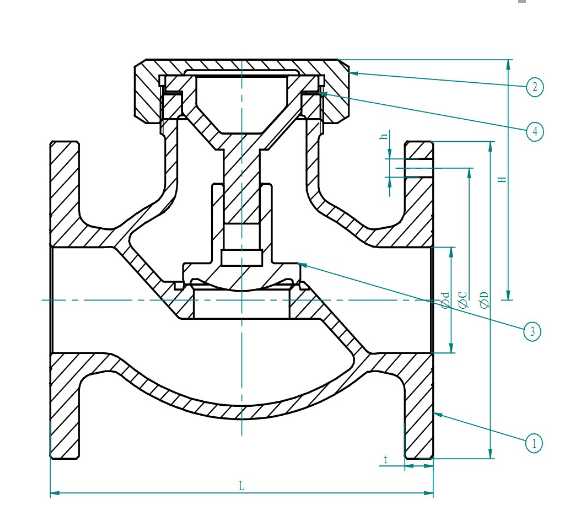

Specification

GASKET NON-ASBESTES
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

Dimensions Data

DN d L D C NO. h t H
15 15 110 95 70 4 15 12 66
20 20 120 100 75 4 15 14 71
25 25 130 125 95 4 19 14 81
32 32 160 135 100 4 19 16 83
40 40 180 140 105 4 19 16 91
