Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design and Manufacture Conform to MSS SP-67
· Groove ends dimensions Conform to AWWA C606
· Face to Face dimensions Conform to MSS SP-67 Table 4
· Testing Conform to MSS SP-67

Specification

Part Name Material
Body ASTM A536 65-45-12
Screw End Carbon Steel
Down Shaft ASTM A564 17-4PH
Disc DI+NBR
O Ring NBR
Bushing PTFE
Bolt Carbon Steel
Plate Carbon Steel

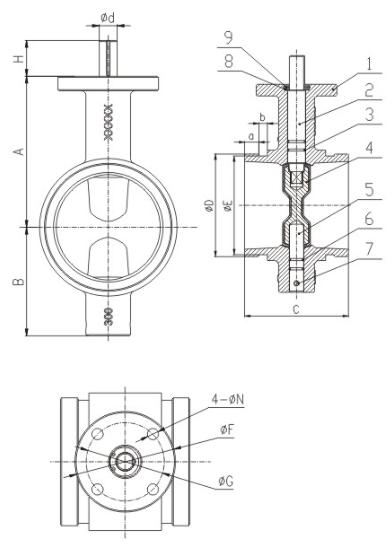

Dimensions Data

DNABCΦDHΦEΦFΦG4-ΦNdab
DN50100628160.33257.1565504-Φ7915.887.95
DN651066496.8733269.0965504-Φ7915.887.95
DN80112.57396.888.93284.9465504-Φ7915.887.95
DN10013597115.8114.332110.0890704-Φ101115.889.53
DN125149119147.6141.332137.0390704-Φ101415.889.53
DN150167132147.6168.332163.9690704-Φ101415.889.53
DN200202162133.4219.145214.41251024-Φ121719.0511.13
DN250228189158.827345268.271251024-Φ122219.0512.7
DN300266230165.1323.945318.191501254-Φ142219.0512.7
