Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

I-FLOW's Pressure Independent Control Valve (PICV) offers precise flow control for optimizing environmental comfort in variable capacity heating and chilled water systems.
Our PICVs, tested to BSRIA standards, guarantee linear performance with high-quality materials, ensuring optimal control valve authority. Enjoy flexibility with various actuator options, measuring points, and a wide range of differential pressures and flow rates.
Our products are designed to help you create, implement, and maintain a system that minimizes performance gaps, leading to energy and cost savings throughout its lifecycle.

Specification

PART NAME MATERIAL
Body CW602N
Static Composite Material
Dynamic Composite Material
Bottom CW602N
Import CW602N
Export CW602N

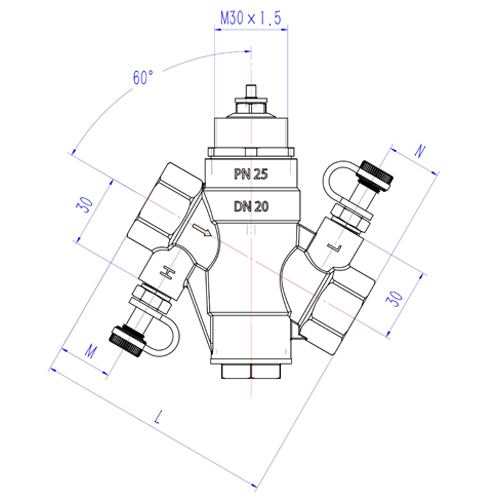

Dimensions Data

MODELSIZE INCHSIZE DNPNConnectionsΔP Range (Kpa)Kv (m³/h)Stroke (mm)Material
BAV9QT.DT0000.00151/2"1525Thread30-6002.44-5DZR Brass
BAV9QT.DT0000.00203/4"2025Thread30-6003.24-5DZR Brass
BAV9QT.DT0000.00251"2525Thread30-6004.54-5DZR Brass
BAV9QT.DT0000.00321 1/4"3225Thread30-4003.65.5DZR Brass
BAV9QT.DT0000.00401 1/2"4025Thread30-4007.510Stainless Steel
BAV9QT.DT0000.00502"5025Thread30-4001015Stainless Steel
BAV9QT.DF0000.00652 1/2"6516Flanged30-4002320Cast Iron
BAV9QT.DF0000.00803"8016Flanged30-4003320Cast Iron
BAV9QT.DF0000.01004"10016Flanged30-4006040Cast Iron
BAV9QT.DF0000.01255"12516Flanged30-4007240Cast Iron
BAV9QT.DF0000.01506"15016Flanged30-40012540Cast Iron
