Features

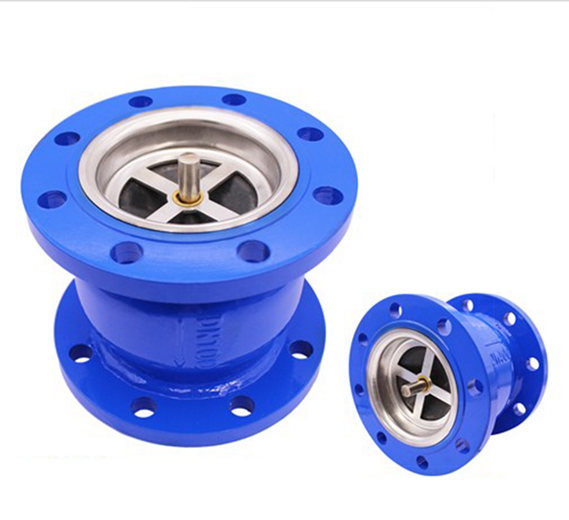

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Working pressure: 1.0/1.6/2.5/4.0MPa
· NBR: 0℃~80℃
· EPDM: -10℃~120℃
· Flange standard: EN1092-2 PN10/16
· Testing: DIN3230, API598
· Medium: Fresh water, sea water, food, all kinds of oil, acid, alkaline etc.

Specification

PART NAME MATERIAL
Guide GGG40
Body GG25/GGG40
Sleeve PTFE
Spring Stainless steel
Seat ring NBR/EPDM
Disc GGG40+Brass

Dimensions Data

DN (mm) 50 65 80 100 125 150 200 250 300
L (mm) 100 120 140 170 200 230 301 370 410
ΦE (mm) 50 65 80 101 127 145 194 245 300
ΦC (mm) 165 185 200 220 250 285 340 405 460
ΦD (mm) PN10 Φ125 Φ145 Φ160 Φ180 Φ210 Φ240 Φ295 Φ350 Φ400
PN16 Φ355 Φ410
