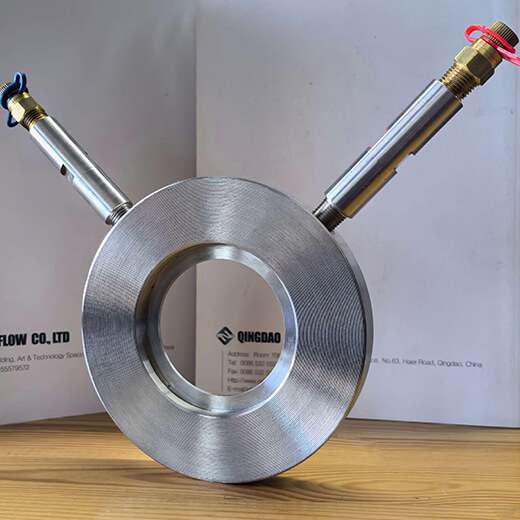

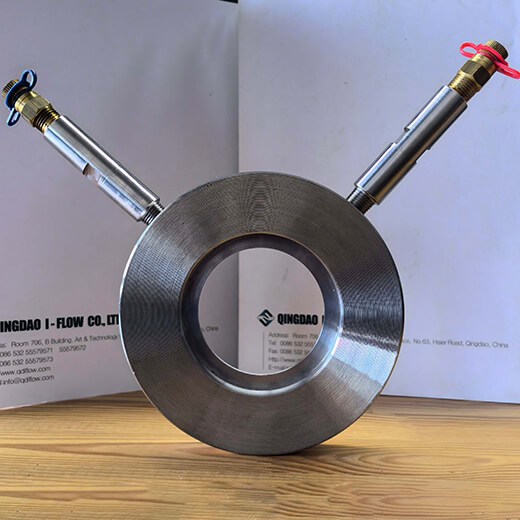

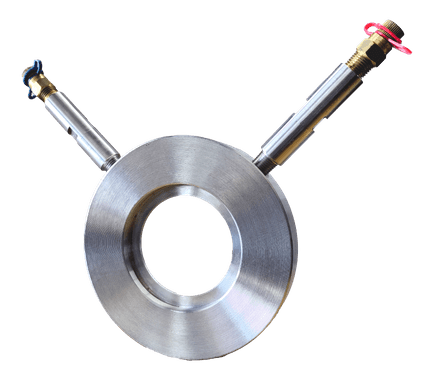

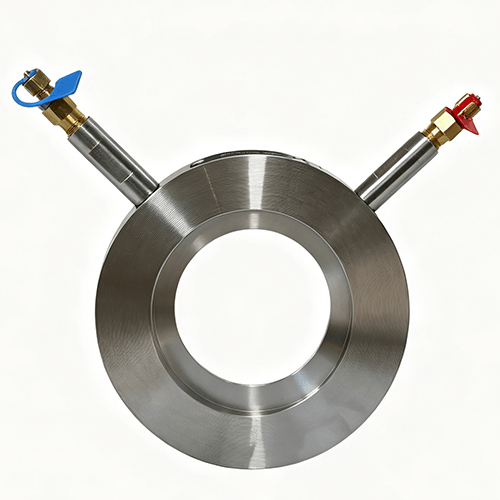

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimized to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

Working conditions:
Water: -10°C to +130°C
below 0°C only for water with added antifreezing fluids over 100°C only for water with added anti-boiling fluids

Specification

Part Name Material
Design Confirm BS7350
Body Stainless steel
Extension Stainless steel
Test point DZR Brass2

Dimensions Data

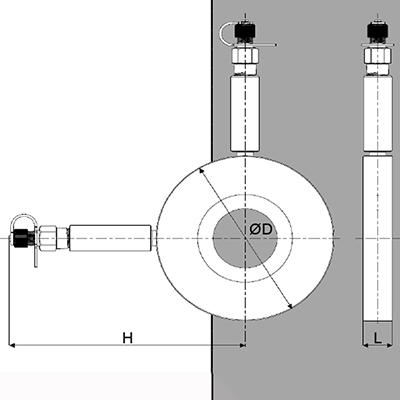

Main Dimensions

DN
H
(MM)
L
(MM)
∅D
(MM)
Peso
(g)
Portate
(I/S)
050
145
18
109
1142
1,52-3,511
065
154
18
127
1468
3,02-6,951
080
162
18
143
1762
6,40-15,361
100
172
18
163
1967
10,85-26,041
125
187
18
193
2560
16,85-39,751
150
200
18
219
2950
23,71-56,911
200
227
18
274
4140
41,86-100,471
250
255
18
330
5350
66,58-156,781
300
283
18
385
6830
94,16-255,991
350
313
21
445
11000
96-261
400
338
21
445
11000
117-320
450
368
21
556
17000
150-408
500
399
21
618
21000
185-506
600
458
25
735
35000
245-667

We suggest extending the exhaust tube to places where the relief water will not pouufe the surrounding or damage other devices, especially electrical apparatus.

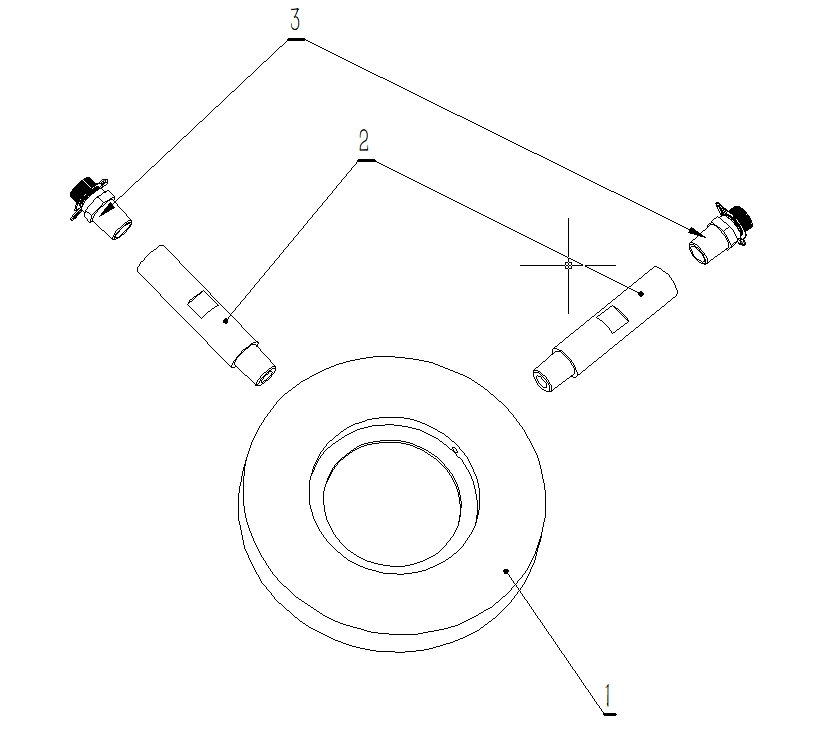

Part List

 Part No.

Name

Material



 1

   Body

  Stainless steel

2

   Extension

Stainless steel

3

   Test point

    DZR Brass2

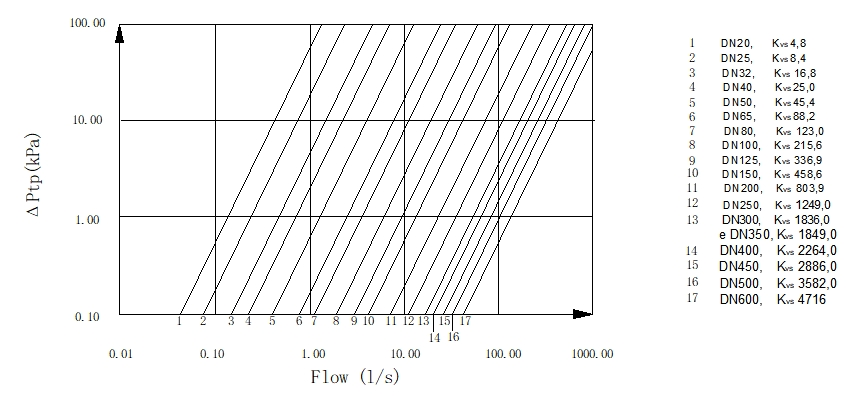

Flow Measurement:

Formula linking flow Q (in l/s) and Δp measured attest points (in kPa).

Minimum flow that can be measured for each diameter may be calculated by using in the formula minimum Δp that can be measured by used manometer.

Kvs*PTP /36

Installation

To obtain optimal performance, install the flow meter on a pipe with the same nominal diameter, preceding and following it with a section of straight pipe as indicated in the figure.
