Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

The ball valve combines a three-piece stainless steel construction, low flow resistance, and low operating torque with flexible connection options. The availability of welded and sanitary clamp configurations allows the valve to be adapted to different piping arrangements, while the specified pressure and temperature ranges support a broad range of fluid-handling applications.

Specification

Product Name Stainless Steel 3-Piece Ball Valve
Temperature Range -10°C to 100°C
Test Standard GB/T 13927
Applicable Media Water, Oil, Gas

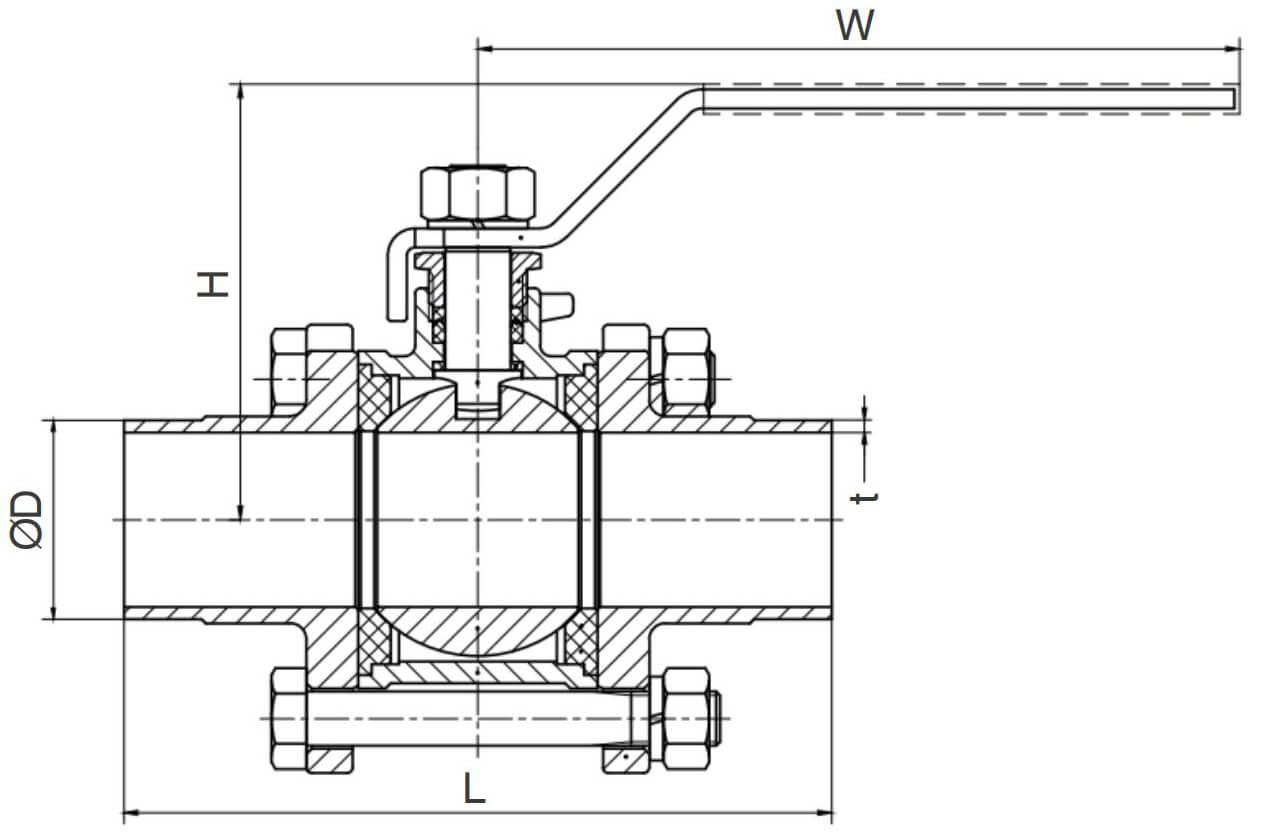

Dimensions Data

DNØDØdLHAW
DN1550.543.59754.54886
DN2050.543.510863.55596
DN2550.543.5113.575.560120
DN3250.543.5124.58272128
DN4050.543.51409080155
DN506456.5154.59891175
DN659183.5180119117219
DN8010697206.5131137229
DN100119110250177172290
