Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design and Manufacture Conform to EN12334、BS5153
· Flange dimensions Conform to EN1092-2 PN16
· Face to Face dimensions Conform to EN558-1 List 10、BS5153
· Testing Conform to EN12266-1
· CI-GREY CAST IRON , DI-DUCTILE IRON

Specification

PART NAME	MATERIAL
BODY	EN-GJL-250/EN-GJS-500-7
SEAT RING	ASTM B62 C83600
DISC	EN-GJL-250/EN-GJS-500-7
DISC RING	ASTM B62 C83600
HINGE	ASTM A536 65-45-12
STEM	ASTM A276 410
BONNET	EN-GJL-250/EN-GJS-500-7
LEVER	CARBON STEEL
WEIGHT	CAST IRON

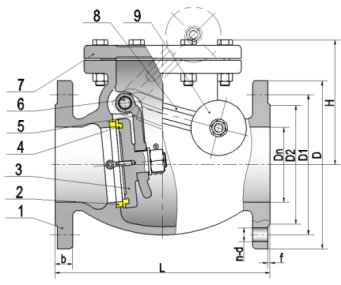

Dimensions Data

DN		50	65	80	100	125	150	200	250	300	350	400	450	500	600
L		203	216	241	292	330	356	495	622	699	787	914	965	1016	1219
D	CI	165	185	200	220	250	285	340	405	460	520	580	640	715	840
D	DI	165	185	200	220	250	285	340	400	455	520	580	640	715	840
D1		125	145	160	180	210	240	295	355	410	470	525	585	650	770
D2		99	118	132	156	184	211	266	319	370	429	480	548	609	720
b	CI	20	20	22	24	26	26	30	32	32	36	38	40	42	48
b	DI	19	19	19	19	19	19	20	22	24.5	26.5	28	30	31.5	36
n-d		4-19	4-19	8-19	8-19	8-19	8-23	12-23	12-28	12-28	16-28	16-31	20-31	20-34	20-37
f		3	3	3	3	3	3	3	3	4	4	4	4	4	5
H		124	129	153	170	196	259	332	383	425	450	512	702	755	856
