Bevel Gear Actuator

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

·The gear actuator can be installed directly on the gate valve,globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. lt can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor gange,double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

Specification

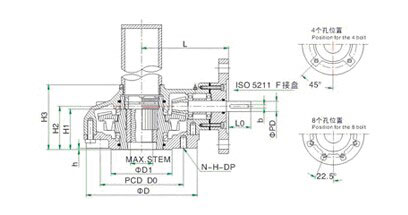

Dimensions Data

Model		MY-VS10	MY-VS20	MY-V0	MY-V1	MY-V2	MY-V3	MY-V35	MY-V5	MY-V6
Tachnical-parameters
Ratio		2.3:1	2.35:1	3.1:1	3.6:1	4:1	4.1:1	5:1	6.3;1	7.1:1
Max-thrust	N	75500	113000	127000	141000	190000	288000	352000	521000	1110000
	Kgf	7690	11500	12900	14400	19400	29400	35900	52200	113000
Max-torque	N·m	216	363	589	932	1491	2296	3404	8500	12500
	Kgf·m	22	37	60	95	152	234	347	459	740
Max-stem dia.Mm		20	25	28	40	52	60	70	100	120
Weight Kg		10	12	21.5	28	35	50	95.5	190	288
Connect ion-size
FLANGE		F10	F12	F14	F16	F(20)	F25	F30	F35	F40
Flange Excircle(D)		125	150	175	210	250	300	350	415	475
Connecting Hole PCD	D0	102	125	140	165	205	254	298	356	406
Connecting Hole PCD	N-H-DP	4-M10-15	4-M12-18	4-M16-24	8-M20-30	8-M16-24	8-M16-24	8-M20-30	8-M30-45	8-M36-54
Convex(D1×h)		70 × 3	85 ×3	100 ×4	130 × 4	140 × 5	200 × 5	230 ×5	260 ×5	300 × 8
Electrical connectedPD×b(key)	PDB×(key)	30 × 8	30 × 8	35 × 10	35 × 10	40 × 12	40 × 12	45 × 14	45 × 14	50 × 14
Electrical connectedPD×b(key)	L0	55	55	60	60	60	60	65	65	70
Appearance-size
H1		38	46	55	62	75	85	105	145	165
H2		65	70	70	75	90	100	140	155	210
H3		110	125	128	145	160	170	225	280	335
L		160	175	200	220	240	265	320	395	405

Bevel gear combination of parameters and electrical equipment
Denso Parameters	Model	IK5210	IK5215	IK5220	IK5230	IK5345	IK5360	IK5490	IK5412	IK5518
	Torque Nm	100	150	200	300	450	600	900	1200	1800
	Speed r/min	18/24	18/24	18/24	18/24	24/48	24/48	24/48	18/24	24/36
	FlangeGB/T12222-2005	F10	F10	F14	F14	F16	F16	F25	F25	F30
	Torque Nm	185	285	480	864	1450	1920	3600	6050	10200
