The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

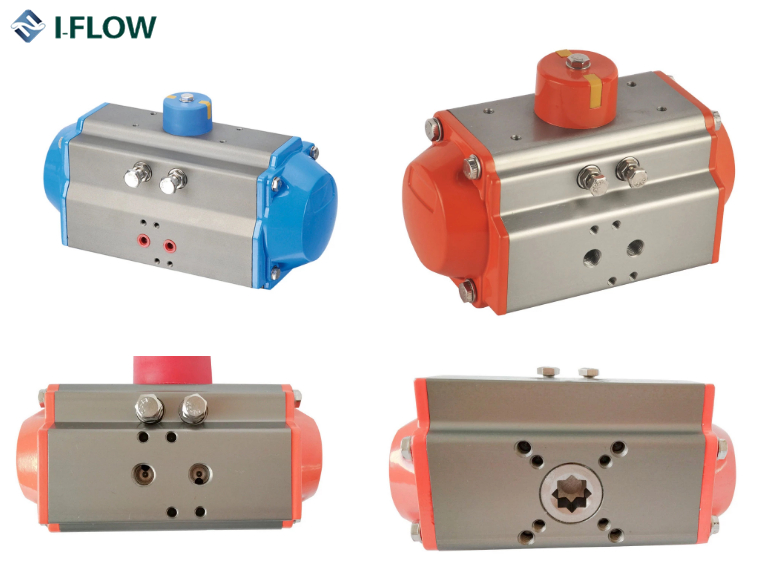

· The Aluminum pneumatic actuator is a 90° Double acting or Spring return rack and pinion system, which has been designed for the actuation of all type of 1/4 turn valves or 1/4 turn applications.
The special finish of the interior surface of the body (Ra 0,4 - 0,6 um) together with the use of antifriction pads manufactured in material of a very low coefficient of friction (LAT LUB), mounted in the pistons, prevent metal-metal contact.
I-FLOW actuators enjoy a long and maintenance free life.
Model | FLANGE L(ISO5211) | R/R1 | A | B | C | D | E | F | G | H | I | J | K | O | P | S | T | U | V | W | X |
Q/Q1 | M/N(mfn) | ||||||||||||||||||||
AT-32 | FC3 | M5 | 116 | 51 | 23 | 29 | 70 | 45 | 30 | 80 | PF | M6 | 1/8'' | 20 | 40 | 4 | 4 | 12 | 24 | 16 | 32 |
φ36 | 10/9 | ||||||||||||||||||||
AT-50 | F03/F05 | M5/M6 | 146 | 47 | 29 | 42 | 99 | 69 | 30 | 80 | PF | M6 | 1/8'' | 20 | 40 | 4 | 4 | 12 | 24 | 16 | 32 |
φ36/φ50 | 13/11 | ||||||||||||||||||||
AT-63 | F03/F05 | M5/M6 | 163 | 59 | 36 | 48 | 115 | 85 | 30 | 80 | PF | M6 | 1/8'' | 20 | 40 | 4 | 4 | 12 | 24 | 16 | 32 |
φ36/φ50 | 16/14 | ||||||||||||||||||||
AT-75 | F05/F07 | M6/M8 | 214 | 68 | 43 | 51 | 132 | 102 | 30 | 80 | PF | M6 | 1/8'' | 20 | 40 | 4 | 4 | 12 | 24 | 16 | 32 |
φ50/φ70 | 19/17 | ||||||||||||||||||||
AT-88 | F05/F07 | M6/M8 | 252 | 68 | 50 | 56 | 145 | 115 | 30 | 80 | PF | M6 | 1/8'' | 20 | 40 | 4 | 4 | 12 | 24 | 16 | 32 |
φ50/φ70 | 20/17 | ||||||||||||||||||||
AT-100 | F07/F10 | M8/M10 | 270 | 95 | 56 | 64 | 157 | 127 | 30 | 80 | PF | M6 | 1/4'' | 20 | 40 | 4 | 4 | 12 | 24 | 16 | 32 |
φ70/φ102 | 24/22 | ||||||||||||||||||||
AT-115 | F07/F10 | M8/M10 | 316 | 97 | 65 | 75 | 185 | 145 | 30 | 80 | PF | M6 | 1/4'' | 30 | 62 | 4 | 4 | 12 | 24 | 16 | 32 |
φ70/φ102 | 24/22 | ||||||||||||||||||||
AT-125 | F07/F10 | M8/M10 | 354 | 97 | 69 | 79 | 197 | 157 | 30 | 80 | PF | M6 | 1/4'' | 30 | 62 | 4 | 4 | 12 | 24 | 16 | 32 |
φ70/φ102 | 29/27 | ||||||||||||||||||||
AT-145 | F10/F12 | M10/M12 | 418 | 115 | 80 | 87 | 218 | 178 | 30 | 80/130 | PF | M6 | 1/4'' | 30 | 62 | 4 | 4 | 12 | 24 | 16 | 32 |
φ102/φ125 | 30/27 | ||||||||||||||||||||
AT-160 | F10/F12 | M10/M12 | 450 | 118 | 89 | 104 | 240 | 200 | 30 | 80/130 | PF | M6 | 1/4'' | 30 | 80 | 4 | 4 | 12 | 24 | 16 | 32 |
φ102/φ125 | 30/27 | ||||||||||||||||||||
AT-190 | F10/F12 | M10/M12 | 518 | 139 | 103 | 105 | 272 | 232 | 30 | 80/130 | PF | M6 | 1/4'' | 30 | 80 | 4 | 4 | 12 | 24 | 16 | 32 |
φ102/φ125 | 40/36 | ||||||||||||||||||||
AT-210 | F14 | M16 | 530 | 130 | 113 | 113 | 297 | 257 | 30 | 130 | PF | M6 | 1/4'' | 30 | 90 | 4 | 4 | 12 | 24 | 16 | 32 |
φ140 | 40/36 | ||||||||||||||||||||
AT-240 | F16 | M20 | 660 | 129 | 129 | 129 | 331 | 291 | 30 | 130 | PF | M6 | 3/8'' | 30 | 90 | 4 | 4 | 20 | 40 | 22.5 | 45 |
φ165 | 50/46 | ||||||||||||||||||||
AT-270 | F16 | M20 | 730 | 160 | 147 | 147 | 372 | 332 | 30 | 130 | PF | M6 | 1/2'' | 30 | 90 | 4 | 4 | 20 | 40 | 22.5 | 45 |
φ165 | 50/46 | ||||||||||||||||||||
AT-300 | F16 | M20 | 880 | 180 | 161 | 172 | 394 | 354 | 30 | 130 | PF | M6 | 1/2'' | 30 | 90 | 4 | 4 | 20 | 40 | 22.5 | 45 |
φ165 | 50/46 | ||||||||||||||||||||
AT-350 | F16/F25 | M20/M16 | 910 | 270 | 190 | 190 | 440 | 410 | 30 | 130 | PF | M6 | 1/2'' | 30 | 90 | 4 | 4 | 20 | 40 | 22.5 | 45 |
φ165/φ254 |
