Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· DESIGN STANDARD
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY:2.1
· SEAT:1.54-0.4

Specification

HANDWHEEL FC200
GASKET TEFLON
STEM C3771BD OR BE
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

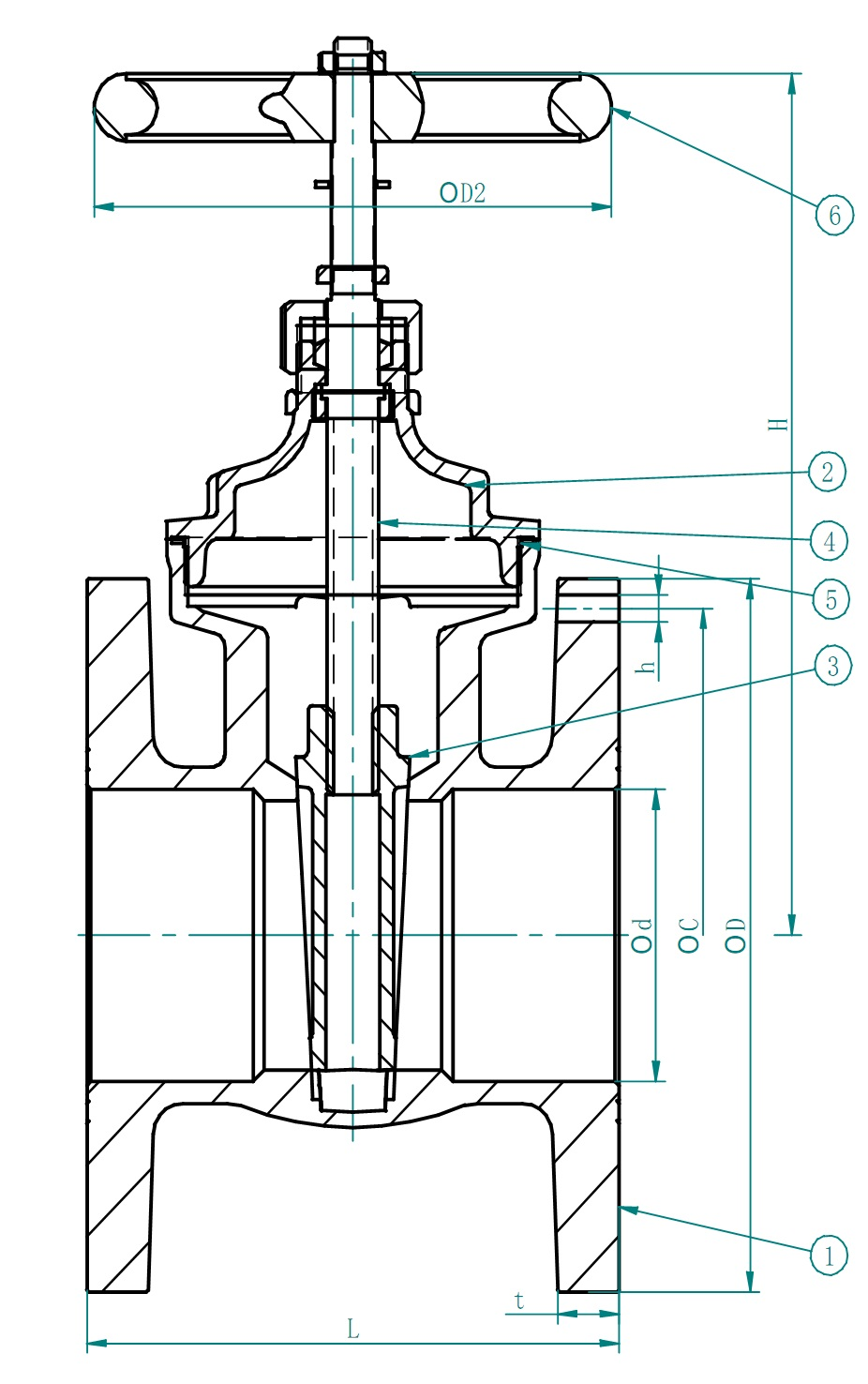

Dimensions Data

DN d L D C NO. h t H D2
15 20 80 95 70 4 12 9 109 80
20 25 80 100 75 4 15 9 110 80
25 25 80 125 90 4 19 9 110 80
32 39 101 135 100 4 19 11 142 100
40 39 101 140 105 4 19 11 142 100
50 50 116 155 120 4 19 12 167 125
65 62 128 175 140 4 19 13 195 125
80 74 144 185 150 8 19 15 218 140
100 100 166 210 175 8 19 15 271 180
