Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

In on-off operation, the actuator rotates the ball between the open and closed positions to start or stop the flow of pipeline medium.
In modulating operation, the actuator positions the ball at the required opening angle. Changing the ball position changes the available flow area, allowing the valve to regulate the flow rate.

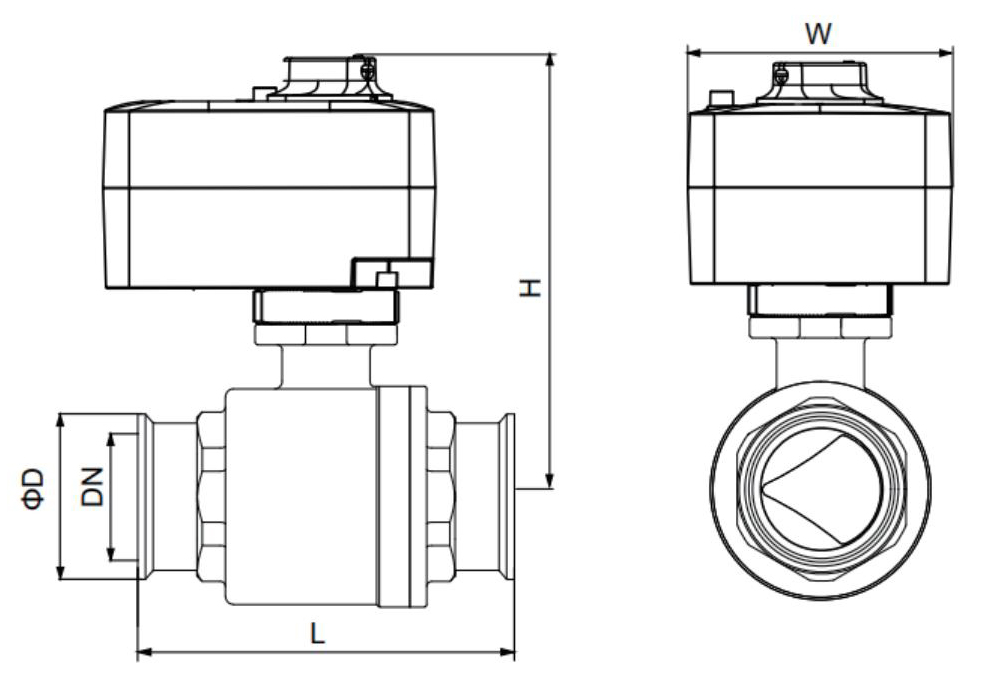

Specification

Product Name Electric Modulating Ball Valve
Nominal Pressure PN16
Nominal Diameter DN15–DN50
Operating Temperature -15°C to 120°C
Connection Type Clamp
Connection Standard DIN 32676
