Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· DESIGN STANDARD:JIS F 7377-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42-0.4

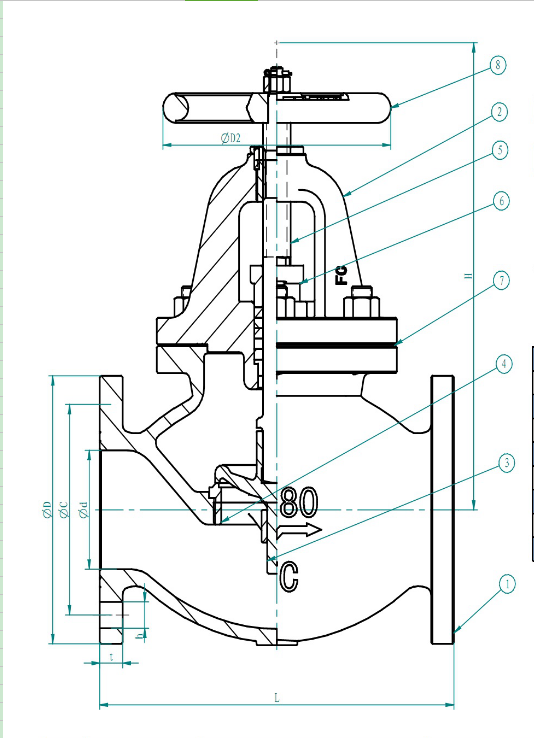

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM C3771BD
VALVE SEAT BC6
DISC BC6
BONNET FC200
BODY FC200
NAME OF PART MATERIAL

Dimensions Data

DN d L D C NO. h t H D2
50 50 220 155 120 8 19 20 285 160
65 65 270 175 140 8 19 22 305 200
80 80 300 200 160 8 23 24 335 200
100 100 350 225 185 8 23 26 375 250
125 125 420 270 225 8 25 26 440 280
150 150 490 305 260 12 25 28 500 315
200 200 570 350 305 12 25 30 606 355
