Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

Valve fully opened:
· Too large a differential pressure and a low downstream pressure may result in damage to the valve by cavitation.
· To avoid it, refer to the differential pressure in two or more stages by installing and connecting directly two or more control valves in tandem.

Specification

Applicable Refrigerant Customer choice
Applicable Medium Temperature -40~+120°C
MAX.Working Pressure 4.5MPa
MAX. Compression Pressure 6.5MPa
Yearly Leakage of Refrigerant ≤2g R22/a

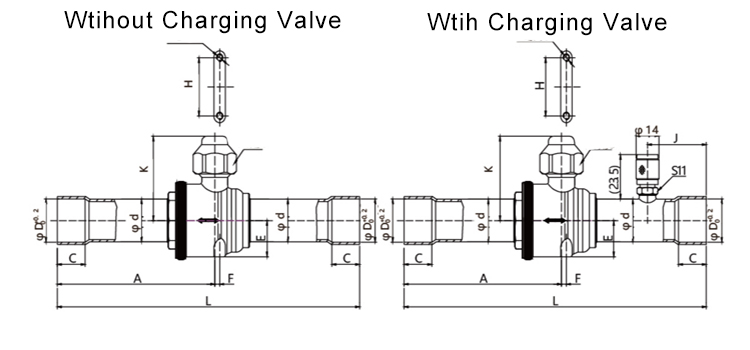

Dimensions Data

ModelACDdEFKMJHL
HBC-6S5766.51014032.5M42044110
HBC-10S65810.11014032.5M42644126
HBC-12S671012.81214032.5M42644130
HBC-1073910.11614.5238M43050138
HBC-12831012.81614.5238M43050159
HBC-16831216.11614.5238M43050159
HBC-19971419.11916.5342M43658185
HBC-22961722.32219343M43658185
HBC-281082028.72824452.5M44466208
HBC-351302535.23530564M64480251
HBC-421452941.541.335674M65687281
HBC-541573554.25445.5983.5M656106305
HBC-6715737675445.5983.5M663106305
HBC-791574079.65445.5983.5M663106305
HBC-67A171376766.8541694M672117343
HBC-79A2073779.679.46416104M680117413
