Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

Valve fully opened:
· Too large a differential pressure and a low downstream pressure may result in damage to the valve by cavitation.
· To avoid it, refer to the differential pressure in two or more stages by installing and connecting directly two or more control valves in tandem.

Specification

Applicable Refrigerant Customer choice
Applicable Medium Temperature -40~+120°C
MAX. working pressure 650PSI/45BAR

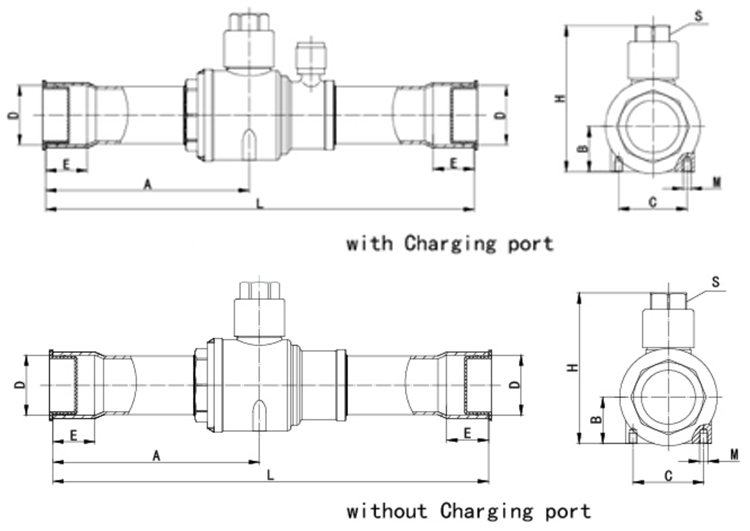

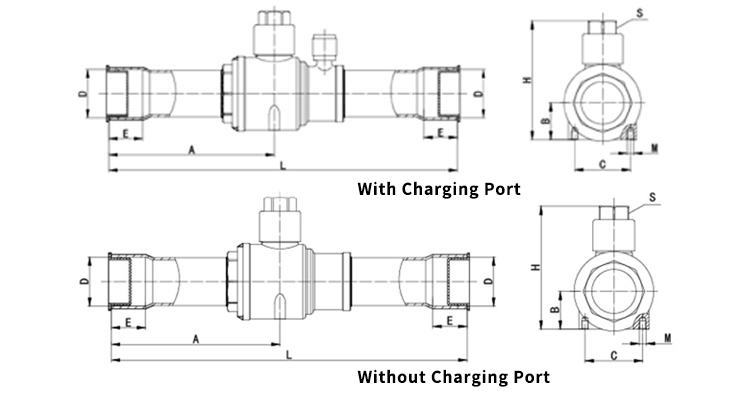

Dimensions Data

ModelLEHABCMS
QFT-6V/QFT-6120745.251.11416M4S12
QFT-10V/QFT-10140945.260.91416M4S12
QFT-12V/QFT-121401045.260.91416M4S12
QFT-16V/QFT-161591453.370.81716M4S14
QFT-19V/QFT-191691654.276.516.522M4S14
QFT-22V/QFT-221861757.086.51824.8M4S14
QFT-28V/QFT-282082070.498.82234M4S17
QFT-35V/QFT-352512580.0119.22738M4S17
QFT-42V/QFT-4228029100.1137.13348M6S24
QFT-54V/QFT-5430534115.2150.640.562M6S24
