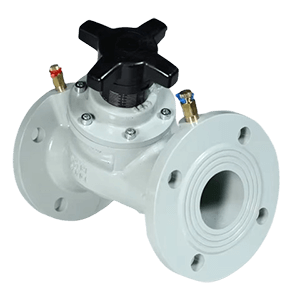

What Are The Best Practices for Installing Balancing Valve

Time: 15-October 2025 | Source: I-FLOW| Share

In every HVAC or hydronic system, achieving perfect balance is the key to comfort and efficiency. Balancing valves help make that happen—but they only perform as well as they’re installed. Even a small mistake, like mounting too close to a bend or skipping a system flush, can throw off readings and waste energy.
So, what should you keep in mind when installing balancing valves? Let’s walk through the essentials.

1. Start Clean and Straight

Before installation, flush the pipeline. Any leftover debris can damage the valve seat or block the pressure ports. Once the system is clean, choose a straight section of pipe for installation—ideally with at least five pipe diameters upstream and two downstream. This gives the fluid time to stabilize for accurate readings.

2. Respect the Flow Direction

Balancing valves are designed for one-way flow. Always follow the arrow marked on the valve body. If the valve is installed backward, you’ll get false readings, and the internal components could wear prematurely.

3. Make It Accessible

You’ll need to check and adjust the valve more than once. Leave enough space for tools, flow probes, and technicians. Adding isolation valves on both sides can also make maintenance easier down the road.

4. Support the Weight

Large valves can be heavy. Use supports or brackets to relieve stress on the pipeline. This prevents leaks and misalignment over time—especially important in vertical installations.

5. Don’t Over-tighten

It’s tempting to crank the bolts “just to be safe,” but that can warp the valve or crush the seat. Follow the torque values recommended by the manufacturer to keep the seal secure without damaging the valve.

6. Test and Record

After everything’s in place, test the system. Use the valve’s measuring ports to check flow and differential pressure. Adjust until each branch matches design values. Then, record these numbers—they’ll be invaluable for future maintenance and troubleshooting.
