Features

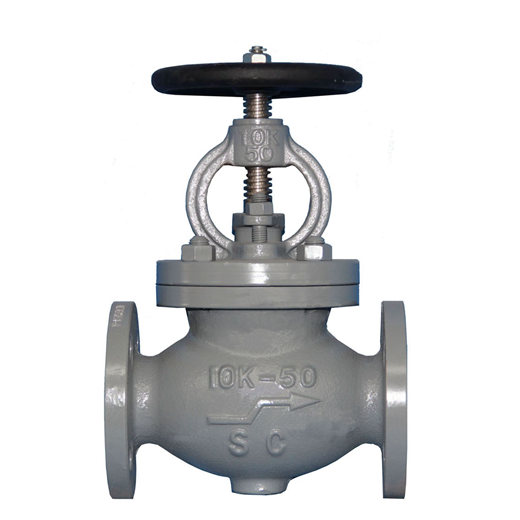

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· DESIGN STANDARD:JIS F 7319-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 2.1
· SEAT: 1.54

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM SUS403
VALVE SEAT SCS2
DISC SCS2
BONNET SC480
BODY SC480
NAME OF PART MATERIAL

Dimensions Data

DN d L D C NO. h t H D2
50 50 220 155 120 4 19 16 270 160
65 65 270 175 140 4 19 18 300 200
80 80 300 185 150 8 19 18 310 200
100 100 350 210 175 8 19 18 355 250
125 125 420 250 210 8 23 20 415 280
150 150 490 280 240 8 23 22 470 315
200 200 570 330 290 12 23 22 565 355
