Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design and Manufacture conform to MSS SP-70
· Flange dimensions conform to ANSI B16.1
· Face to Face dimensions conform to ANSI B16.10
· Testing conform to MSS SP-70

Specification

Body ASTM A126 B
SEAT RING ASTM B62
WEDGE RING ASTM B62
WEDGE ASTM A126 B
STEM ASTM B16 H02/2Cr13
BOLT CARBON STEEL
NUT CARBON STEEL
GASKET GRAPHITE+STEEL
BONNET ASTM A126 B
STUFFING BOX ASTM A126 B
PACKING GLAND ASTM A126 B
HANDWHEEL DUCTILE IRON

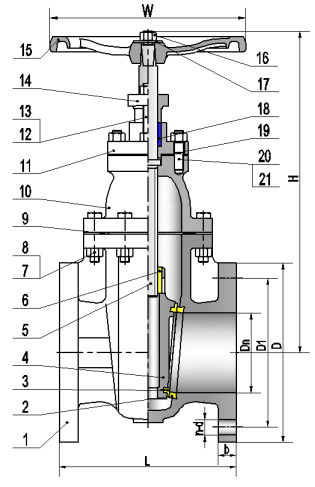

Dimensions Data

NPS 2 3 4 5 6 8 10 12 14 16 18 20 24 30 36 42 48
Dn 51 63.5 76 102 127 152 203 254 305 356 406 457 508 610 762 914 1067 1219
L 177.8 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6 381 406 432 457 508 610 711 813 1015
D 152 178 191 229 254 279 343 406 483 533 597 635 699 813 984 1168 1346 1511
D1 120.7 139.7 152.4 190.5 215.9 241.3 298.5 362 431.8 476.3 539.8 577.9 635 749.3 914.4 1086 1257 1422
b 15.8 17.5 19 23.9 23.9 25.4 28.5 30.2 31.8 35 36.6 39.7 42.9 47.7 53.9 60 67 70
n-d 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35 28-35 32-41 36-41 44-41
H 312 325 346 410 485 520 625 733 881 1002 1126 1210 1335 1535 2140 2365 2770 3050
W 200 200 200 255 306 306 360 406 406 508 558 610 640 640 700 800 900 900
