The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design and Manufacture conform to MSS SP-70
· Flange dimensions conform to ANSI B16.1
· Face to Face dimensions conform to ANSI B16.10
· Testing conform to MSS SP-70

Specification

Body ASTM A126 B
SEAT RING ASTM B62
WEDGE RING ASTM B62
WEDGE ASTM A126B
STEM ASTM B16 H02
BOLT CARBON STEEL
NUT CARBON STEEL
BONNET GASKET GRAPHITE+STEEL
BONNET ASTM A126 B
PACKING GRAPHITE
PACKING GLAND ASTM A126 B
STEM NUT MN-BRASS
HANDWHEEL ASTM A126 B

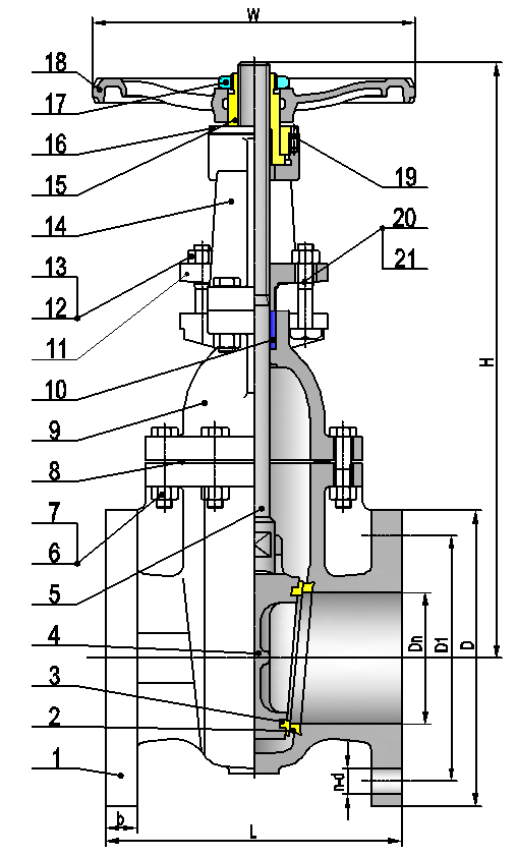

Dimensions Data

NPS 2 3 4 5 6 8 10 12 14 16 18 20 24 30 36 42 48
Dn 51 63.5 76 102 127 152 203 254 305 356 406 457 508 610 762 914 1067 1219
L 177.8 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6 381 406 432 457 508 610 711 813 1015
D 152 178 191 229 254 279 343 406 483 533 597 635 699 813 984 1168 1346 1511
D1 120.7 139.7 152.4 190.5 215.9 241.3 298.5 362 431.8 476.3 539.8 577.9 635 749.3 914.4 1086 1257 1422
b 15.8 17.5 19 23.9 23.9 25.4 28.5 30.2 31.8 35 36.6 39.7 42.9 47.7 53.9 60 67 70
n-d 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35 28-35 32-41 36-41 44-41
H 302 330.5 369 461 523 595 754 940.5 1073 1258 1385 1545 1688 2342 2535 2690 3140 3560
W 180 180 200 250 280 300 360 400 450 508 558 610 640 640 700 800 900 900
